Printing technology
Fused Filament Fabrication (FFF)
Build Volume
200 x 200 x 210 mm
(7.9 x 7.9 x 8.3 inch)
Extruder maximum printing
temperature
410 ºC (770 F)
Heated bed maximum temperature
150 ºC (302 F)
Print speed
up to 100 cm3/h

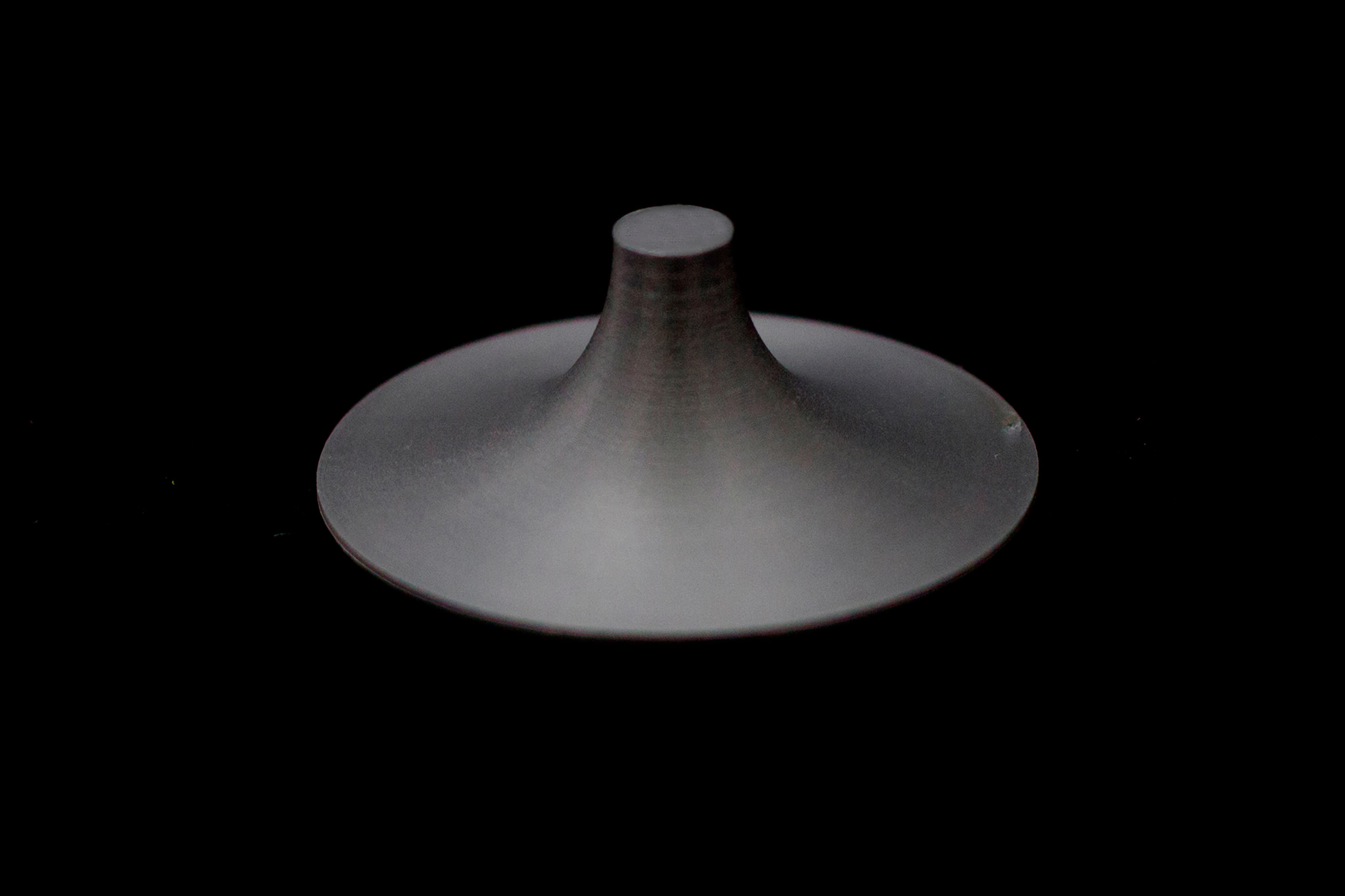

Minimum Layer Thickness
10 microns (0.01 mm)
Layer Resolution
0.01 – 0.8 mm (depending on the
nozzle diameter)
Pozitioning Resolution
11 x 11 x 1.25 microns
Filament diameter
1.75 ± 0.1 mm
Nozzles diameter
0.2 – 0.8 mm (0.3 in startkit)
- A compact solution for business
- Affordable and durable
- Full support of the X Platform
Smart on the inside
Fast printing with the highest quality
High repetitiveness of the end result
Compact and easy to use
Printing control systems
Filament flow control system
Built-in encoder and algorithms monitor material feeding once every 20ms
End-of-filament sensor
Control of end of supply for plastic and automatic printing pause. This allows to save material and secure printing result
Temperature control
The radiator temperature sensor can prevent plastic from overheating in the “cold zone”
Layer time control
Allows to sustain the print quality even for the models with small printing layer/size
Delta Z control
The height delta between the nozzles is calculated automatically and is adjusted with up to 0.01mm precision in dual-material printing mode
Automatic first layer control
At the start of the printing process the nozzle to print-bed pressure (z-offset) is calculated automatically
Surface control
Control of surface warping and will pause the printing and save material in a case of printout delamination
Profiles system
Automates print settings based on consumable used. Same workload can be launched with di erent plastics. Pro les are embedded automatically from the cloud base
Access over the network
Remote printing launch and control of the 3DP farm though Polygon X software
Specs
Printing
Mechanics
Casing
Aluminium composite
Frame
Steel
Heated bed construction
Aluminium, glass
Guides
cylindrical (steel)
Aluminium composite
Frame
Steel
Heated bed construction
Aluminium, glass
Guides
cylindrical (steel)
Electricity
Networking
220 ± 15%, 50 Hz
(option 110 ± 15%, 60 Hz)
Maximum Power Consumption
400 W
Interfaces
Ethernet, USB 2.0 (Flashdrive
in start kit)
220 ± 15%, 50 Hz
(option 110 ± 15%, 60 Hz)
Maximum Power Consumption
400 W
Interfaces
Ethernet, USB 2.0 (Flashdrive
in start kit)
Printing Materials

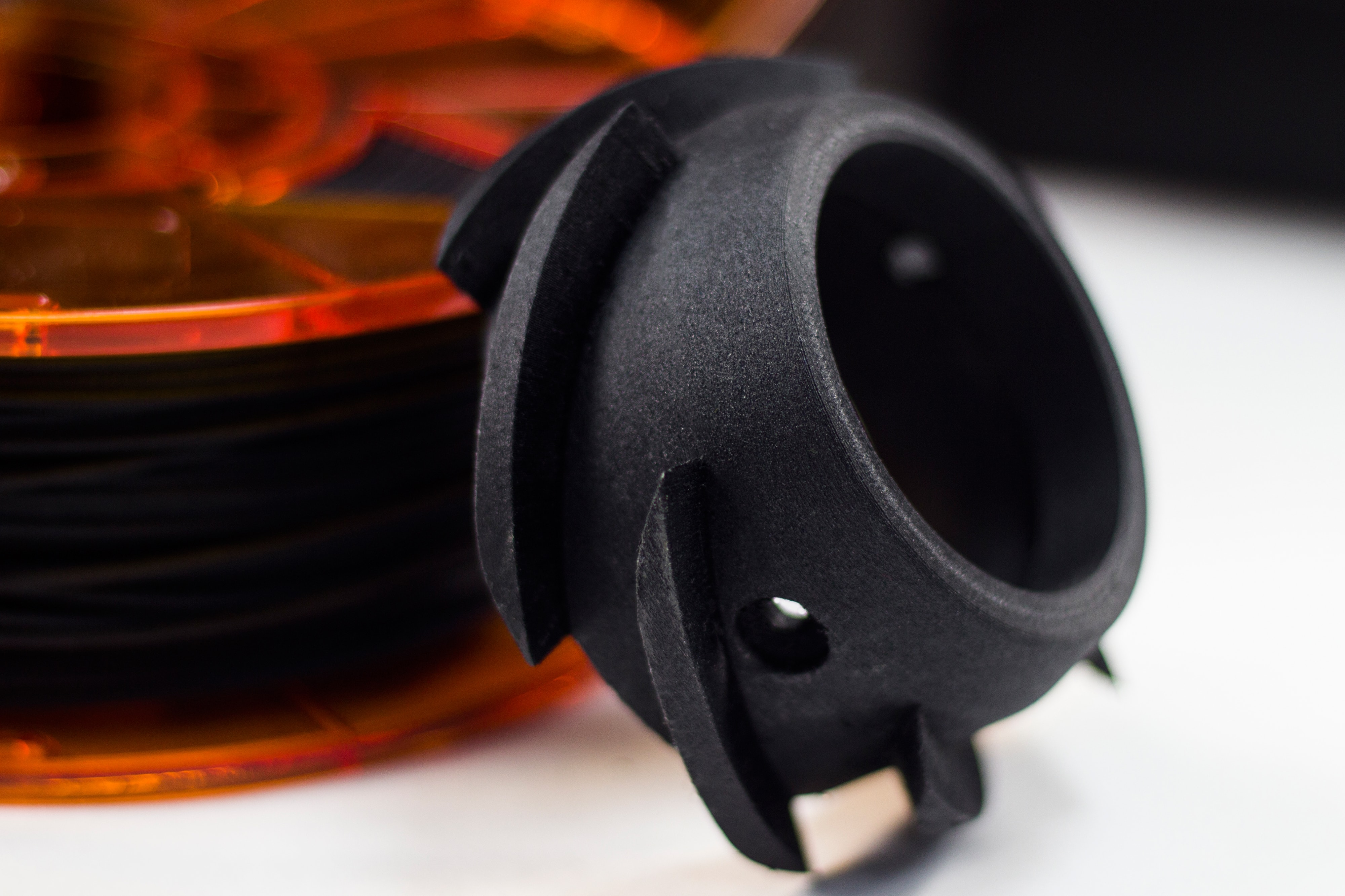

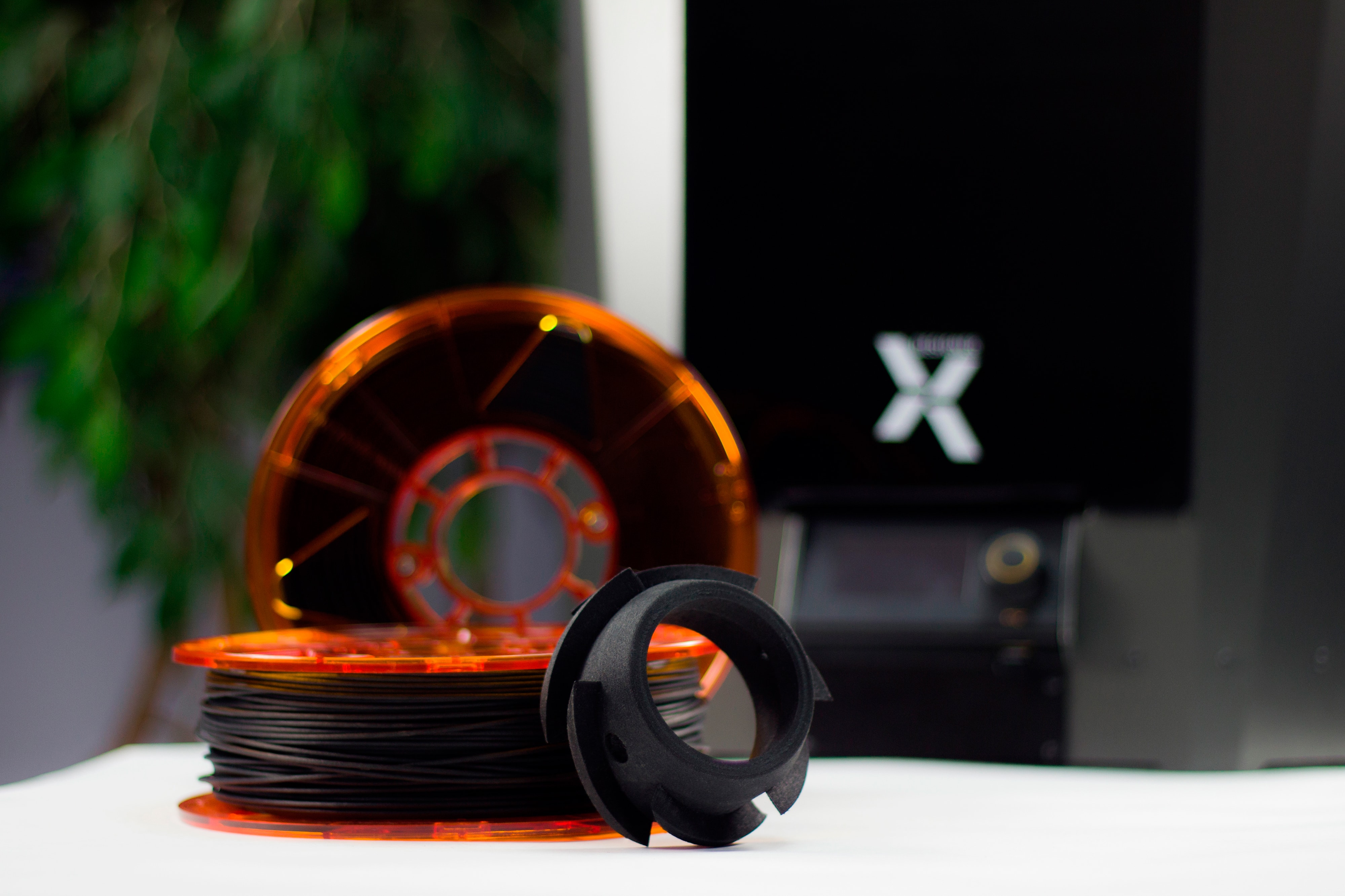

Formax (ABS + CF), Ultrax (PA + CF), PEEK, PA, PC, TPU, TPE, PP, ASA, SBS, PETG, ABS, PLA, PVA, HIPS and others
Phisical Characteristics
Printer dimensions
In box 700 x 500 x 540 mm
Without box 490 x 390 x 430 mm
Weight
20 kg (17 kg)
In box 700 x 500 x 540 mm
Without box 490 x 390 x 430 mm
Weight
20 kg (17 kg)
Software
Software
Polygon X
File Types
*.stl, *.plgx
Polygon X
File Types
*.stl, *.plgx
Features
Primary systems
Filament Flow Control
End-of-Filament Sensor
First Layer Control
Built-in Profile System
Network Printing
Additional features
Filament drying mode
Printer status notification system
Auto-control workability of all systems
Surface print control system
Table Leveling
Active leveling
Filament Flow Control
End-of-Filament Sensor
First Layer Control
Built-in Profile System
Network Printing
Additional features
Filament drying mode
Printer status notification system
Auto-control workability of all systems
Surface print control system
Table Leveling
Active leveling
